Max471 Voltage Current Sensor Votage Sensor Current Sensor Module For Arduino

Product Description

Description:   This module can be used to test the current and voltage in the circuit.  The principle of voltage test based on principle of resistive voltage divider design, can make the red terminal connector input voltage to 5 times smaller. for Arduino analog input voltages up to 5 v, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V). For Arduino AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V.  The MAX471 chip on the board used to test the consume current of the load.

Parameter:

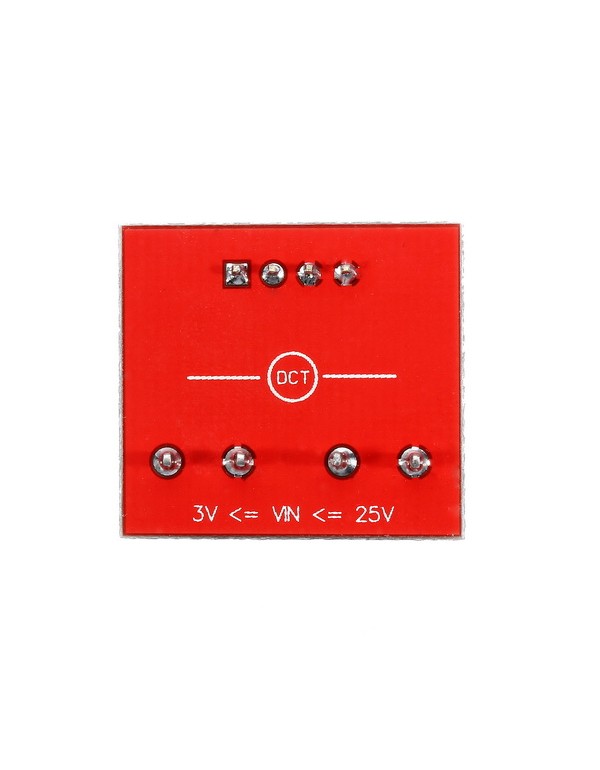

Test Voltage range: DC3 – 25V (Arduino work on 5V) or DC3 – 16.5V (for Arduino work on 3.3V)  Test Current range: DC 0 – 3A, Precision 2, current and voltage transformation ratio is 1V/A

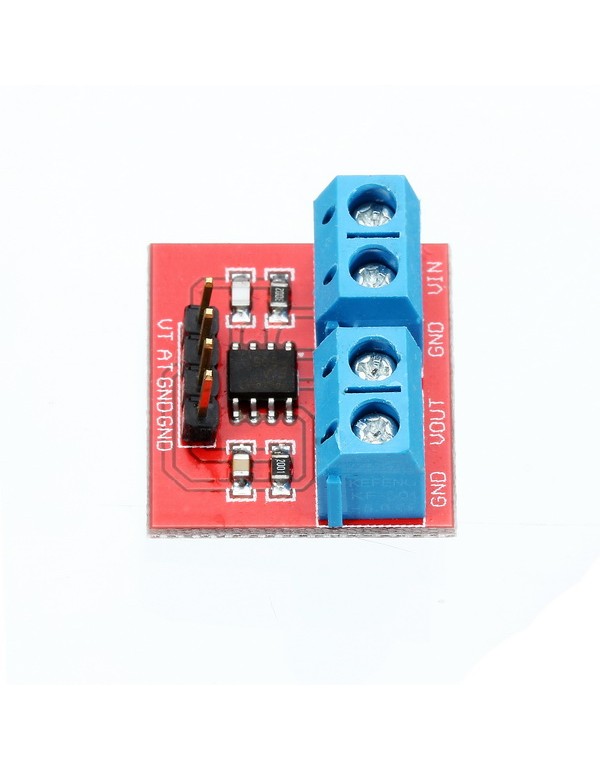

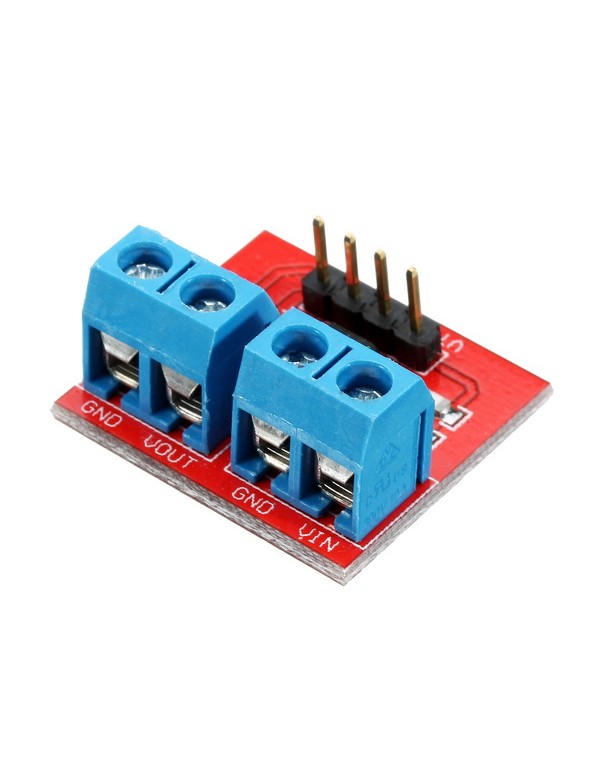

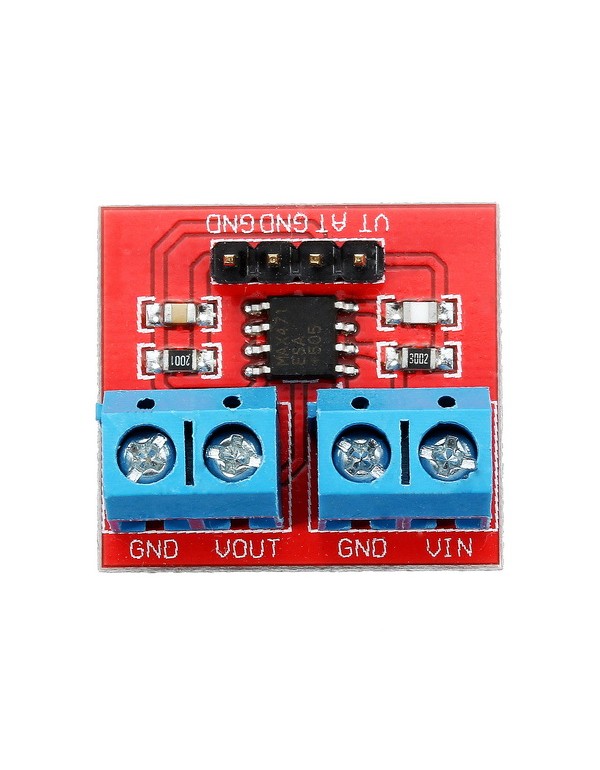

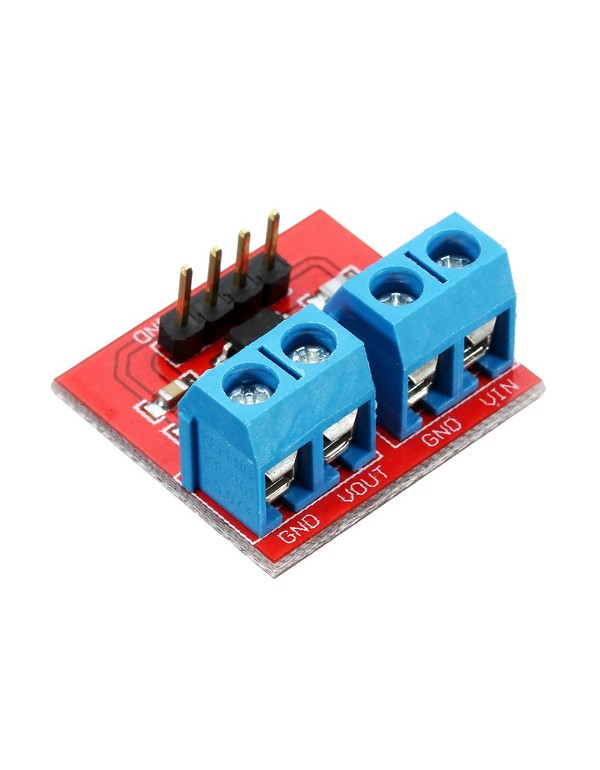

Detection Pin Description:   VT: voltage detection pin, the detection voltage is 1/5 of the input voltage. AT: current detection pin GND: connect to  the Arduino GND VOUT/VIN: VOUT=VIN

Package included:

1 x Max471 Voltage Current Sensor Votage Sensor
