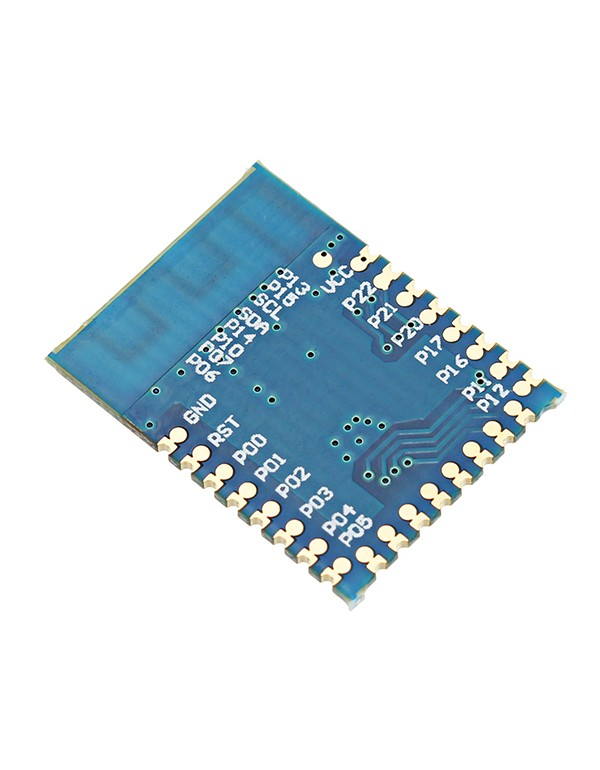

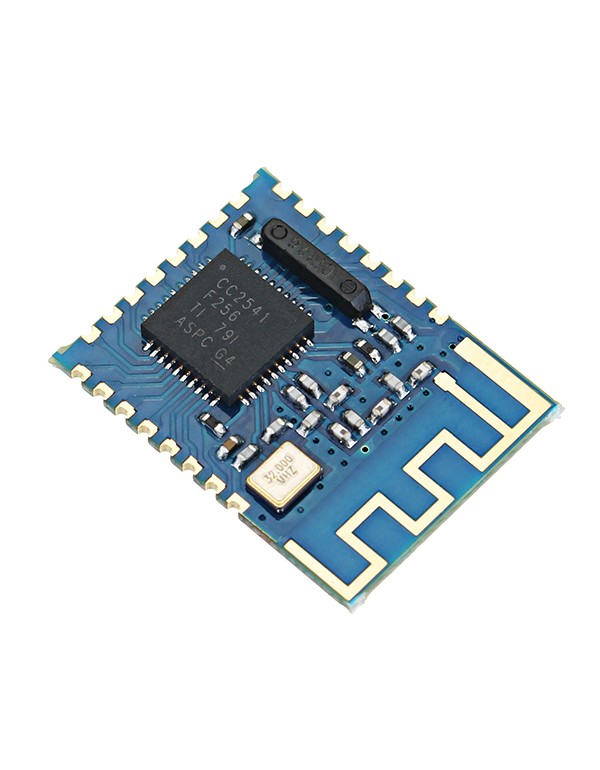

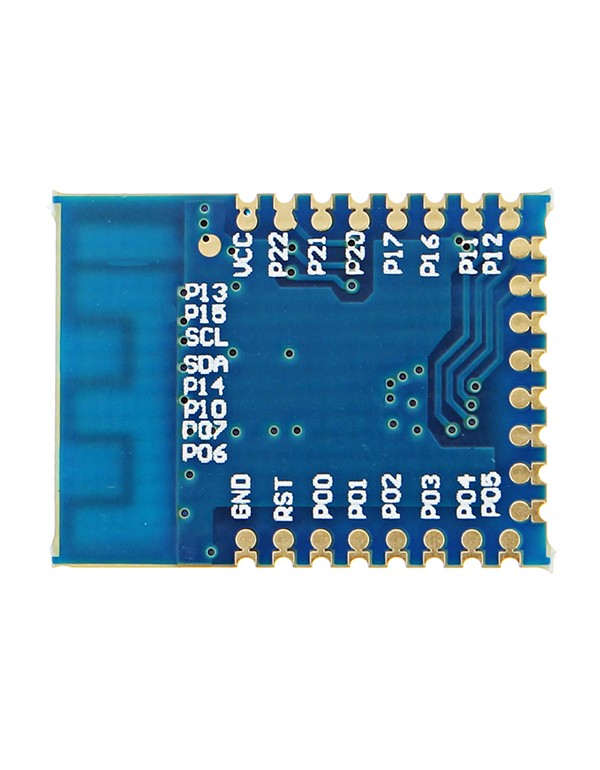

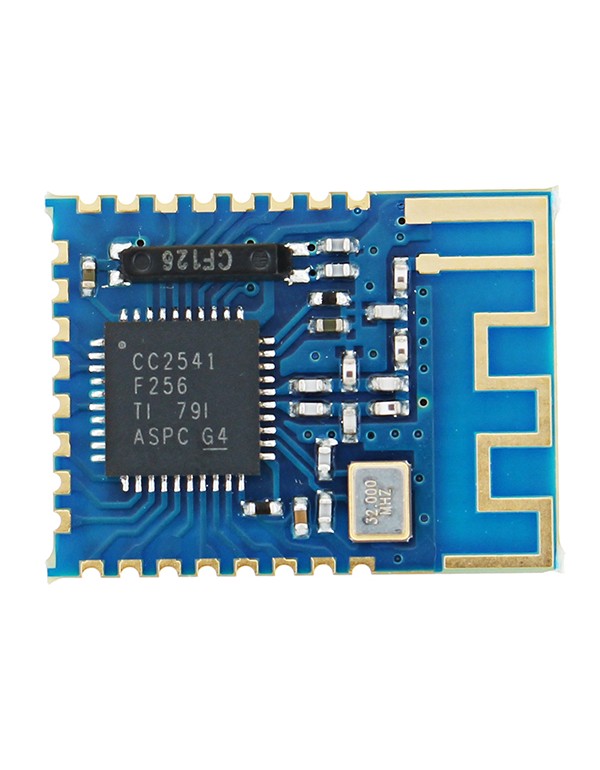

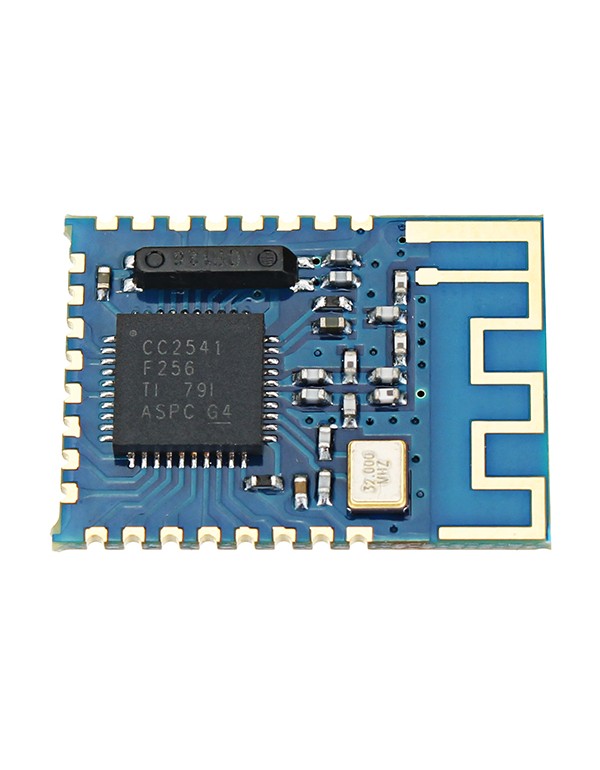

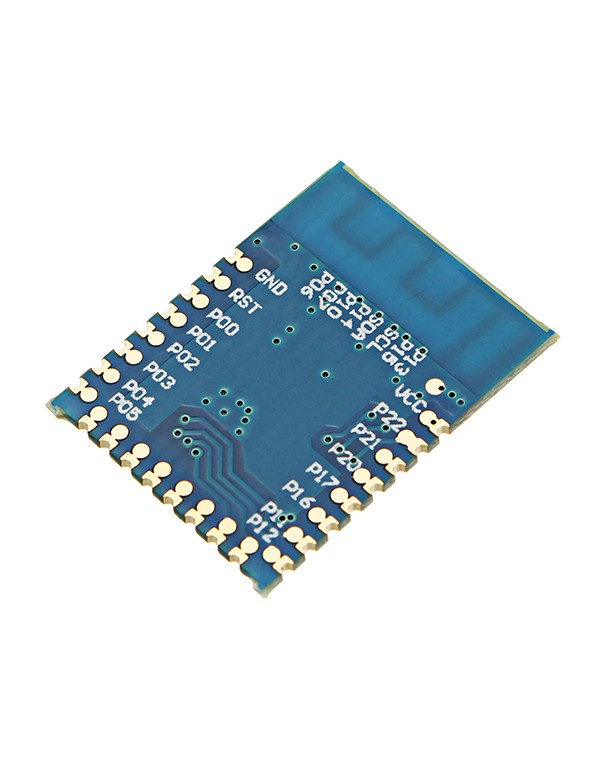

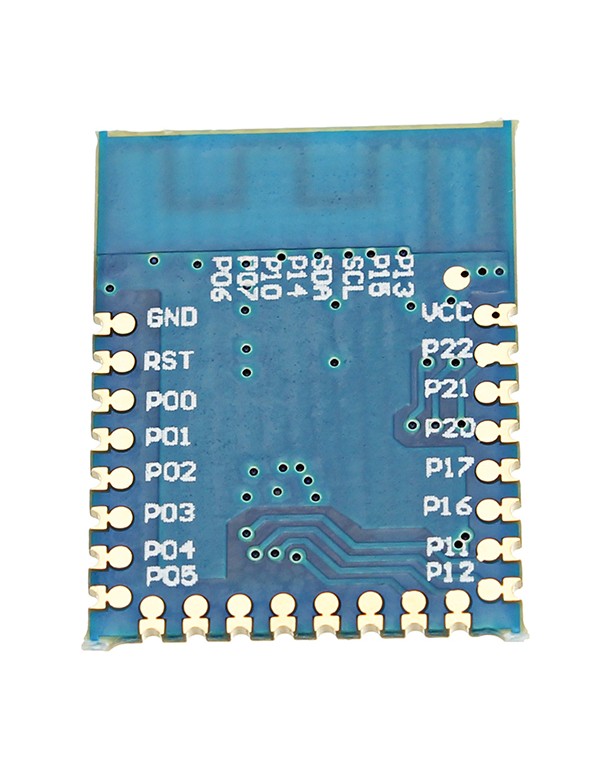

JDY-08 BLE Bluetooth 4.0 Uart Transceiver Module CC2541 Central Switching Wireless Module
Product Description
Features: Micro-XIN transmission (support AirSync protocol, micro-XIN H5 or factory server communication, including long packet data analysis transceiver)Micro XIN control mode (motor speed control, LED light switch control)APP transparent transmission (to support Android, IOS data transparent)i_Beacon mode (support WeChat shake shake the agreement with the Apple i_Beacon protocol)Sensor mode (temperature, humidity, and many other sensor data acquisition applications)Host transparent mode (data transmission between modules, the host and slave communication)Host observer mode (application sensor, indoor positioning)PWM mode (applied to the motor speed, LED light brightness adjustment)IO mode (applied to mobile phone control relay or LED light off)Indoor room applications (application of i_Beacon data acquisition to achieve the range of positioning)RTC modeRTC alarm mode: You can set the RTC alarm time to control the IO port, support two alarm time settings
Electrical characteristics:
| Mode | status | current |
| Slave transmission mode | Connected/Unconnected/Standby | 0.8mA/300uA/1uA |
| Slave broadcast mode(i_Beacon, sensor) | Connected/Unconnected/Standby | 0.5mA/300uA/1uA |
| Host transparent mode | Connected/Unconnected/Standby | 20mA/9mA/1uA |
| Host observer mode(sensor) | Connected/Unconnected/Standby | 25mA |
| The above test power supply voltage is 3.3v | ||
Package included:
1 x JDY-08 BLE Bluetooth 4.0 Uart Transceiver Module
