IR Obstacle Sensor Module For Smart Car
$6.64
Product DescriptionIR Obstacle Sensor Module For Smart Car Features: 1. Object is sensed the output is 0, and output is 1 as it is not sensitive, directly connected with 3V and 5V microcontroller IO port. 2.Sensing distance 2-40 cm, long distance, good anti-jamming capability. (No..
Product Description

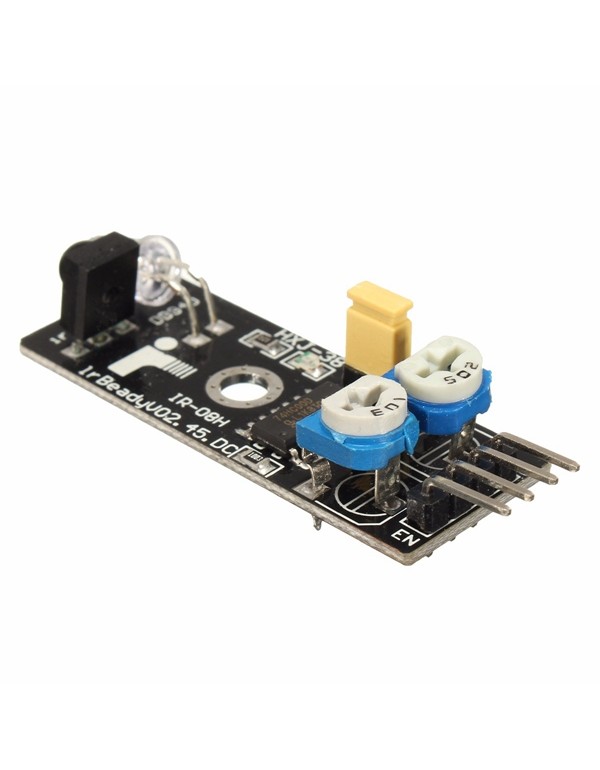

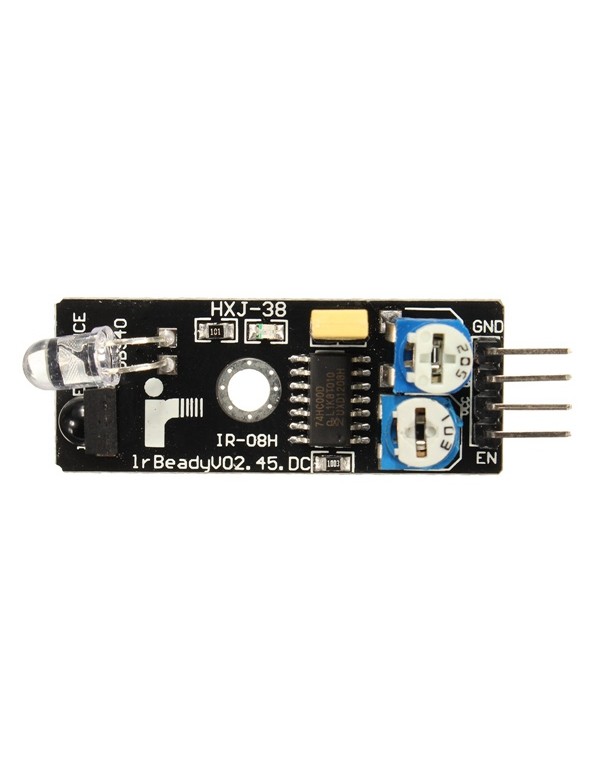

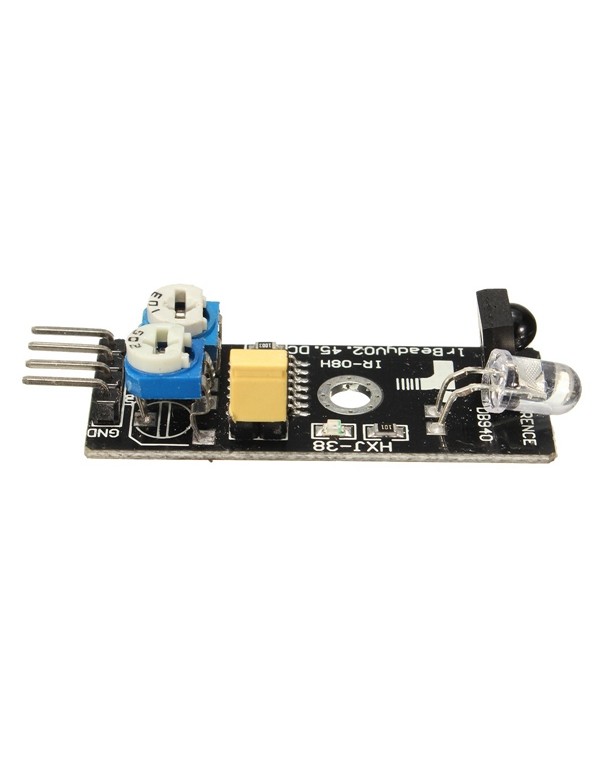

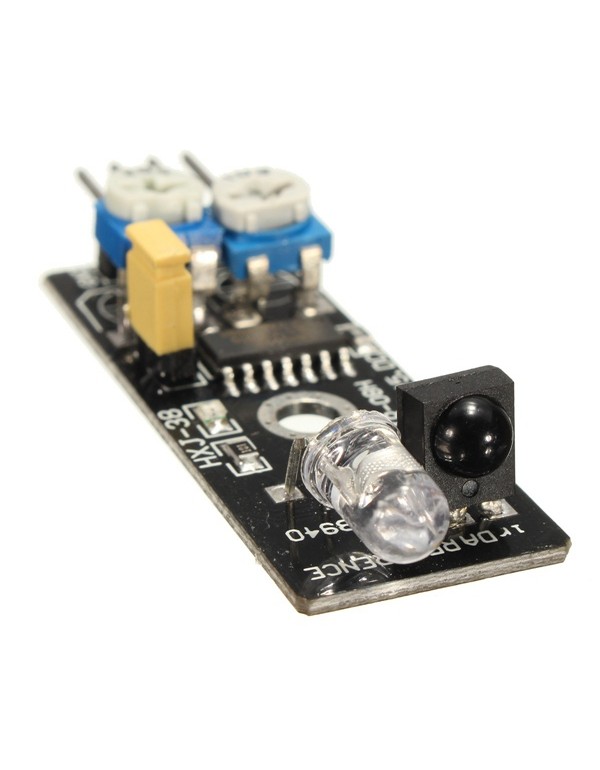

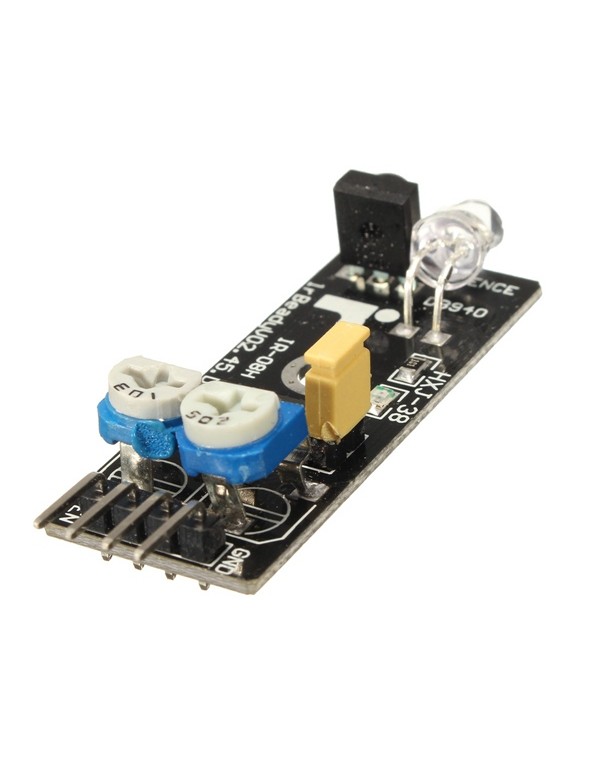

IR Obstacle Sensor Module For Smart Car
Features:
1. Object is sensed the output is 0, and output is 1 as it is not sensitive, directly connected with 3V and 5V microcontroller IO port.
2.Sensing distance 2-40 cm, long distance, good anti-jamming capability. (Note: The infrared sensor can not detect all objects and get the same distance,the light reflectance of different colors objects are different,if the objects color is darker and close to black,the detected distance is shorter , 2-40 cm of this sensor is measured against the white wall)
3.Fast speed, suitable for smart car obstacle avoidance, black and white line tracking, anti-drop, product counters, cutting lines, liquid level detection.
4.This sensor is made with black and white lines tracing the car ran without black line on white paper, available in concrete The yellow complex environment such as the black line patrol track. As long as the black line around the slightly lighter color than black can, eliminating the traditional moves, so that environmental layout easier.
5.The sensor 3 to 6V supply, wide range, suitable for 3V and 5V MCU system.
6.EN terminal is equal to "1" the sensor is not working and equal to "0" when the sensor is working.After plug the jump cap on sensor,the EN end connect to ground long term(EN long as "0"). Please remove the jumper cap first when use EN end.

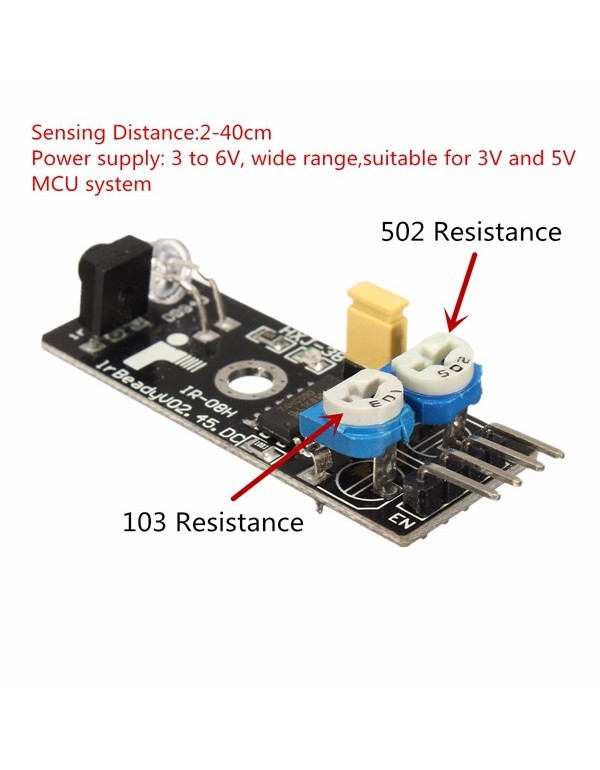

7.Frequency adjustment potentiometer is used to adjust the carrier frequency of the infrared emission tube, because the integration receiver 38KHZ in particular when the carrier frequency is the most sensitive. The 502 resistor clockwise transferred do (that is, the launch tube at maximum brightness), and then at a white wall tone 103 resistance, has been transferred to the sensing distance is the farthest so far so that the sensor will work in the best state
Package include:
1 x IR Infrared Obstacle Sensor module
