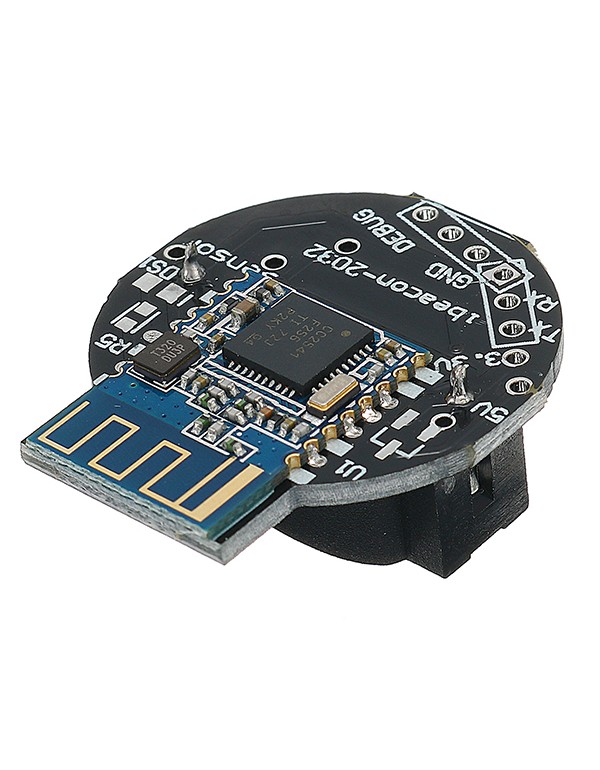

iBeacon Module Bluetooth 4.0 BLE Support Near-field Positioning Sensor Wireless Acquisition
$16.60
Product Description Description: This module is for apple iOS 7.0 or android 4.3+, bluetooth 4.0+ BT version: Bluetooth Specification V4.0 BLE Send and receive no bytes limit. Working frequency: 2.4GHz ISM band Modulation method: GFSK(Gaussian Frequency Shift Keying) RF power: -23dbm, -6db..
Product Description
Description:
This module is for apple iOS 7.0 or android 4.3+, bluetooth 4.0+
BT version: Bluetooth Specification V4.0 BLE
Send and receive no bytes limit.
Working frequency: 2.4GHz ISM band
Modulation method: GFSK(Gaussian Frequency Shift Keying)
RF power: -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT
Command AT+POWE.
Speed: Asynchronous: 6K Bytes
Synchronous: 6K Bytes
Security: Authentication and encryption
Service: Central & Peripheral UUID FFE0,FFE1
Power: +3.3VDC 50mA
Long range: Open space have 100 Meters with iphone4s
Power: In sleep mode 400uA~1.5mA, Active mode 8.5mA.
Working temperature: –5 to +65 Centigrade
Size: 24.8mm x 24.8mm, thickness 7.5mm
Battery type: CR2032 (NOTE: the battery not included)
You can customize your own iBeacon configuration including UUID etc
Application:
Support firmware upgrade
Support payment interface
Support broadcast read the battery level, temperature, humidity acquisition, without connecting module
Lightblue for Apple: you can download it in your apple store
Pacakge includes:
1 x iBeacon Module Bluetooth 4.0 BLE
