Apm2.5/2.6/2.8 Pixhawk PIX 2.43 Bluetooth Module Bluetooth Data Link

Product Description

Apm2.5/2.6/2.8 Pixhawk PIX 2.43 Bluetooth Module Bluetooth Data Link

Description:Connect to your vehicle using Bluetooth! This Bluetooth data link module allows you to connect a Pixhawk or APM autopilot to a Bluetooth-compatible Android device using DroidPlanner or Andropilot ground station apps. Leave your telemetry radio and OTG cable at home, and make a direct Bluetooth connection for pre-flight mission planning and vehicle setup.

Specification:Dimensions:1.4″ x 0.6″ x 0.17″Weight:9.6 g (0.3 oz)Operation voltage:3.6 to 6 VI/O level:3.3 VDefault baud rate: 57600Supported baud rates: 9600, 19200, 38400, 57600, 115200, 230400, 460800Pairing code: 1234Range: 50 m

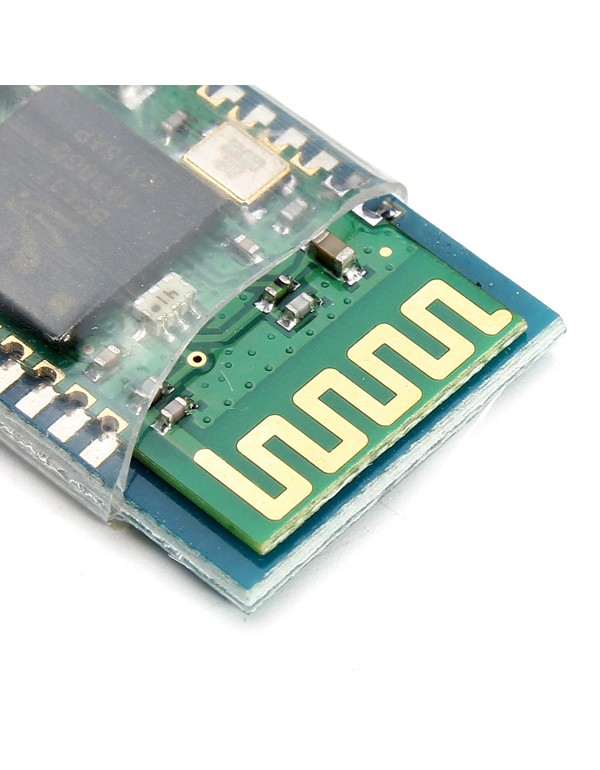

Feature:Typical -80dBm sensitivityUp to +4dBm RF transmit powerUART interface with programmable baud rateAuto-connect to the last device on power as defaultPermit pairing device to connect as defaultIntegrated antenna

Note:This module is intended for pre-flight ground use only. It is not a replacement for an RC transmitter and receiver. The range of the connection is limited to standard Bluetooth range (50 m).

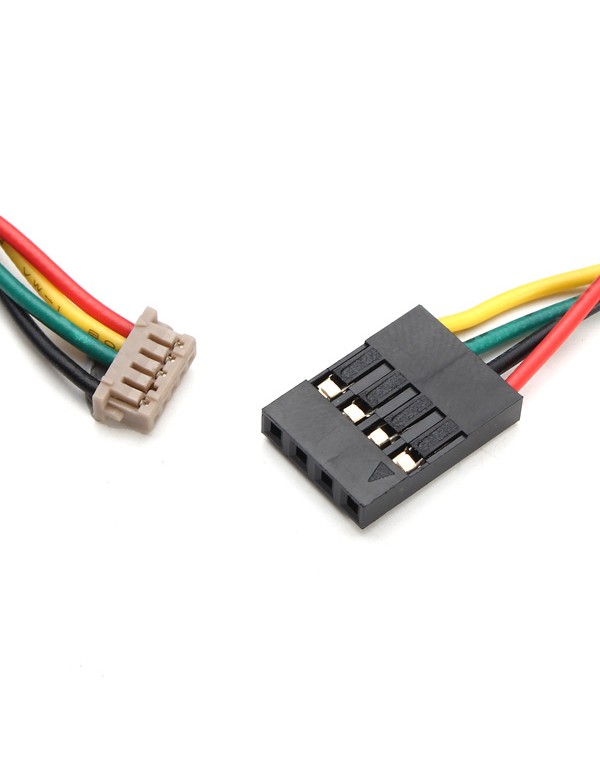

Package Included:1X Bluetooth module1X Pixhawk cable (six-position DF13 to FTDI) 20 cmOR1X APM cable (five-position DF13 to FTDI) 20 cm
